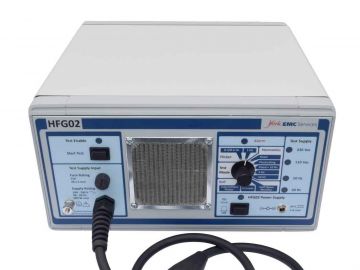

Harmonics and Flicker Generator 02
The new Harmonics & Flicker Generator (HFG02) is our newest HFG product. It is a multi-function electronic load which has been designed with the purpose of verifying harmonic and flicker test equipment.
The HFG02 offers an easy and reliable way to externally check the performance of the measurement system to the EN/IEC 61000-3-2 harmonics and IEC/EN 61000-3-3 flicker standards. A reference source is particularly useful where there is little intuitive sense of the expected response and the tests rely on software control and calculation to produce a result.
The HFG02 provides a series of harmonic and flicker disturbances of a nominal but stable level. This allows the user to periodically verify their test equipment, helping maintain compliance with standards and laboratory quality procedures. Alternatively, due to its stability, it may be used as a transfer standard from a known calibrated test system.
The HFG02 is a standalone device that connects directly to the test equipment and simulates it under test (EUT), generating known repeatable levels of harmonic and flicker disturbance.
Key Features
- Stable load simulation
- Injects harmonics and interharmonics to IEC / EN 61000-3-2 and flicker to IEC / EN 61000-3-3
- Harmonic and flicker test modes, EUT modes
- Dual supply operation
- Independent power supply
- Compact and portable
Features/Applications
Features
Stable load simulation
- Repeatable measurements for test system verification
Injects harmonics to IEC/EN 61000-3-2 and flicker to IEC / EN 61000-3-3
- Evaluation of test systems specifically to EN standards
Harmonic test modes
- Steady-state harmonic-rich load current, representing a fixed load
- Harmonic-rich load currents fluctuating between two load conditions
- Interharmonic load currents at 5 Hz and 10 Hz rates
- Harmonic and interharmonic-rich load current
Flicker test modes
- Fixed level of mains disturbance at 1 Hz rate
- Fixed level of mains disturbance at 8.33 Hz or 8.6 Hz rates
EUT Modes
- Simulates waveforms generated by several different types of equipment
- Half-wave rectifier
- Analogue dimmer
- Intermittent flicker
Compact and portable
- Comparisons between sites and environments
Dual supply operation
- Automatically detects 115 Vac and 230 Vac systems and adjusts its output to match
- Test supply voltage and frequency indication
Independent power supply
- Separate power supply to the HFG02, to avoid contamination of the test signals
Applications
- Harmonics and flicker measurement systems: validation and verification
- Reference source for
- Daily pre-test verification checks, if required by the accreditation authorities
- Long-term performance monitoring of the test system
- Comparison of different harmonics and flicker measurement systems
Specifications
Frequency range
- 50 Hz, 60Hz
Test supply connector
- 1.3 m captive lead with CEE 7/7 mains plug for connection to test equipment
Dimensions
- 330 mm × 320 mm × 170 mm
Weight
- 8 kg
Power Supply
- External power supply, 24 Vdc, 1 A maximum
Indicators
- Test supply voltage
- Test supply frequency
- Test enabled
- Alarm (thermal overload, system error)
Harmonic current
- Up to 40th harmonic: 50 Hz to 2 kHz (50 Hz), 60 Hz to 2.4 kHz (60 Hz)
Flicker disturbance
- 1 Hz and 8.33 / 8.6 Hz rates
Kits
Standard Order Kits
HFG02KIT01 – Standard HFG02 harmonics and flicker generator kit
Parts included
- HFG02 harmonic and flicker generator
- CAL22 – measurement of harmonics, interharmonics and flicker generated
- User Manual, Test Certificate and Tabulated Results
- External power supply
Manufacturer's Calibrations
CAL22 – Measurement of harmonic and flicker disturbance generated
- Harmonics
- Measurement of load current according to IEC / EN 61000-3-2 in Fixed, Fluctuating and Interharmonic modes. Fundamental to 40th harmonic, 115 Vac/60 Hz and 230 Vac/50 Hz test supply
- Flicker
- Measurement of short term flicker (Pst) according to IEC / EN 61000-3-3 with disturbance at 1 Hz and 8.33 Hz/8.6 Hz rates. 115 Vac/60 Hz and 230 Vac/50 Hz test supply

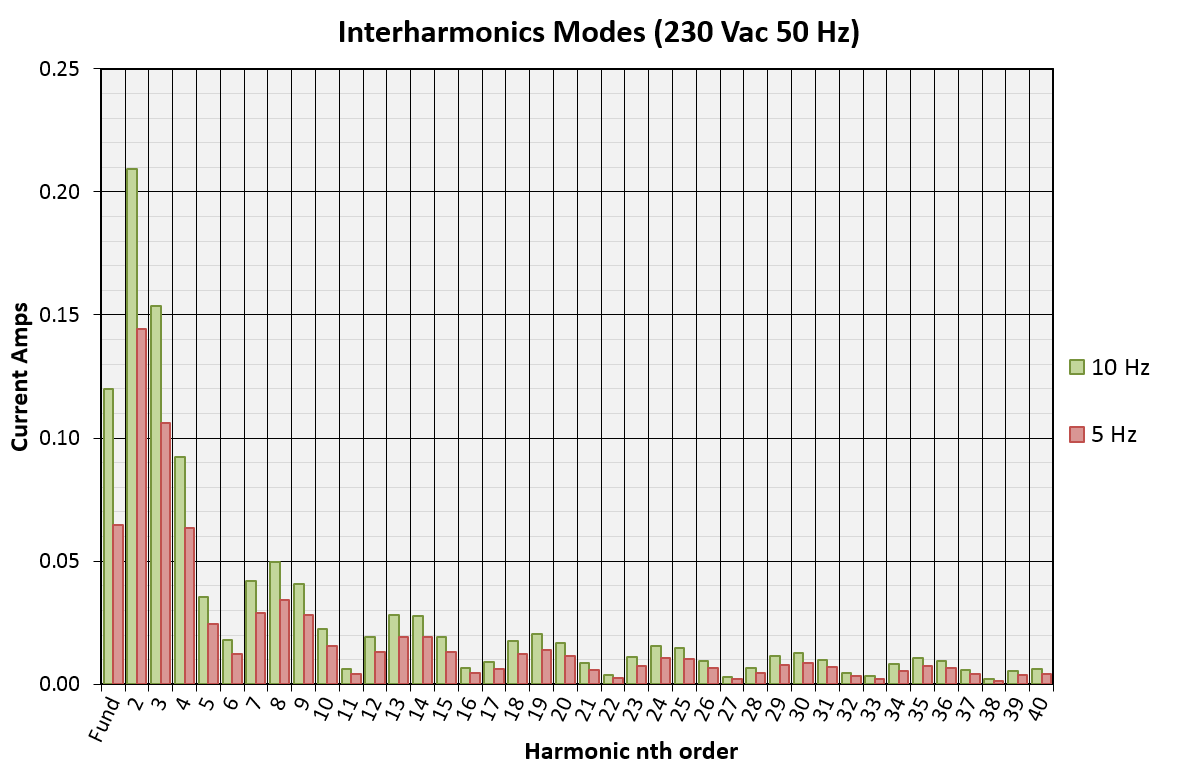

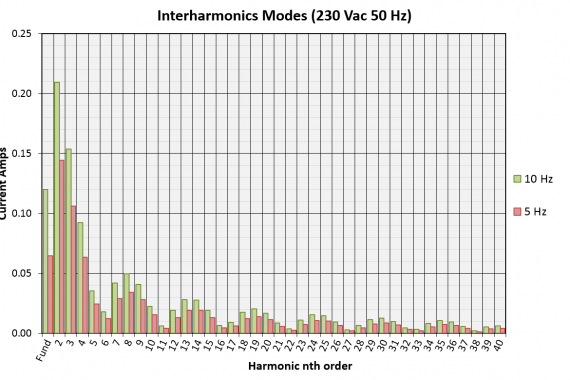

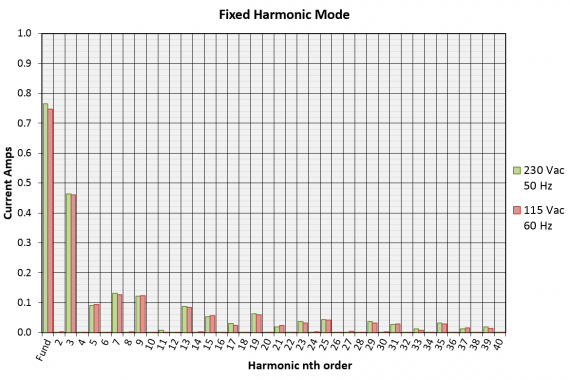

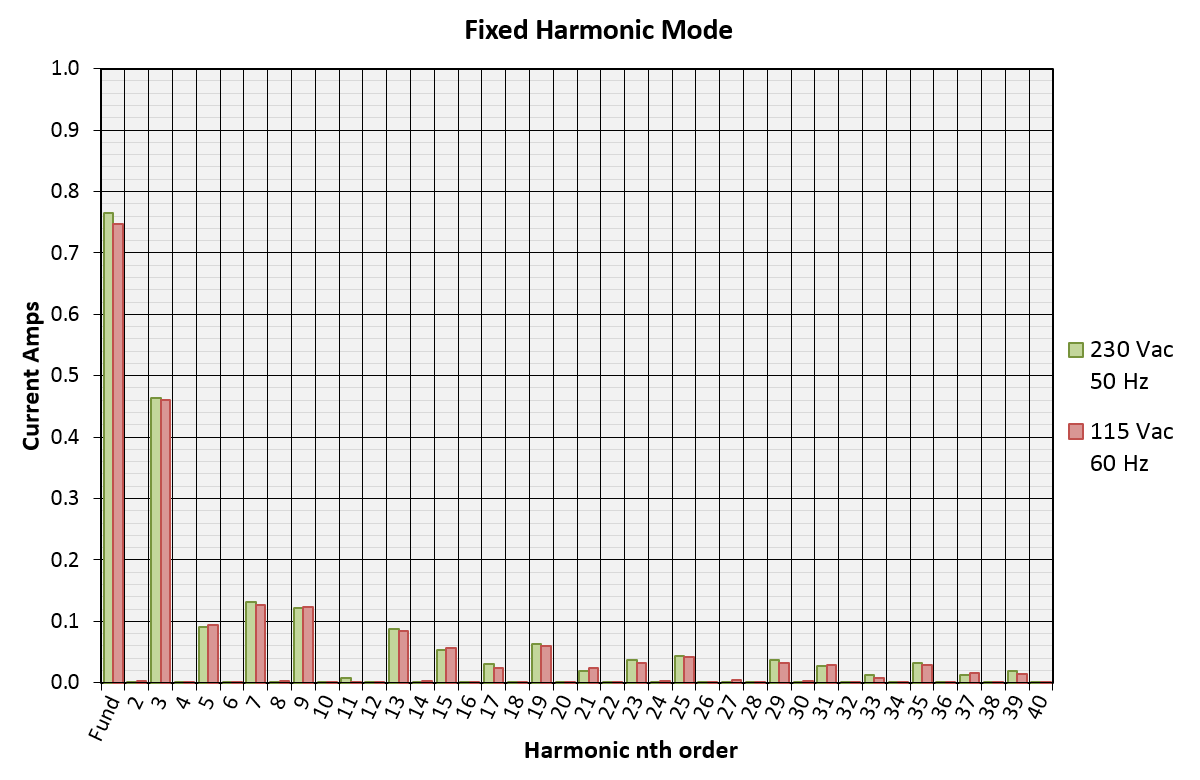

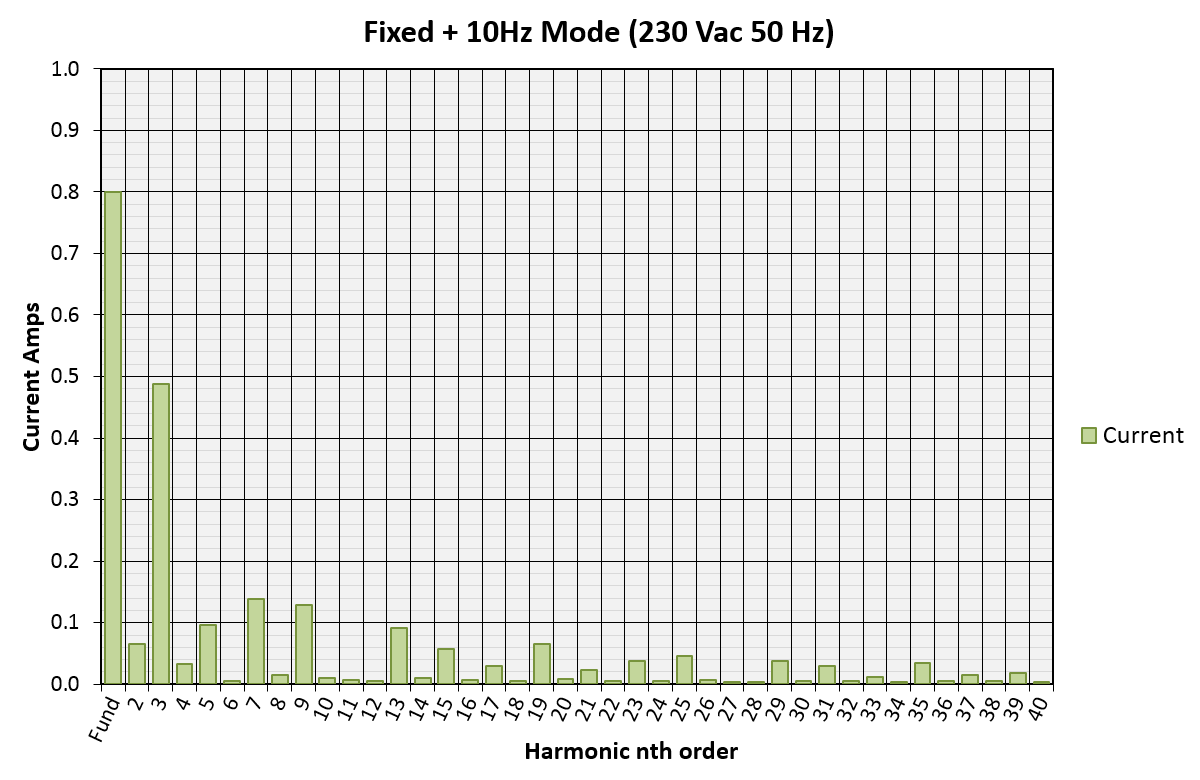

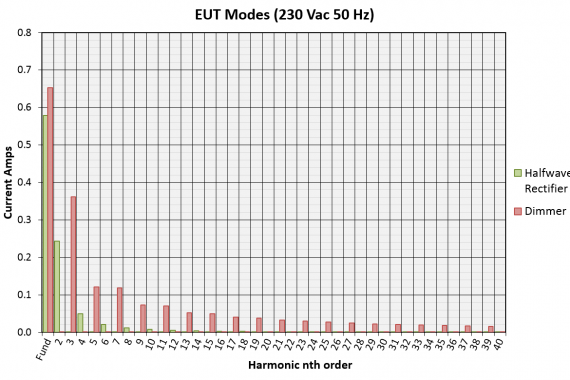

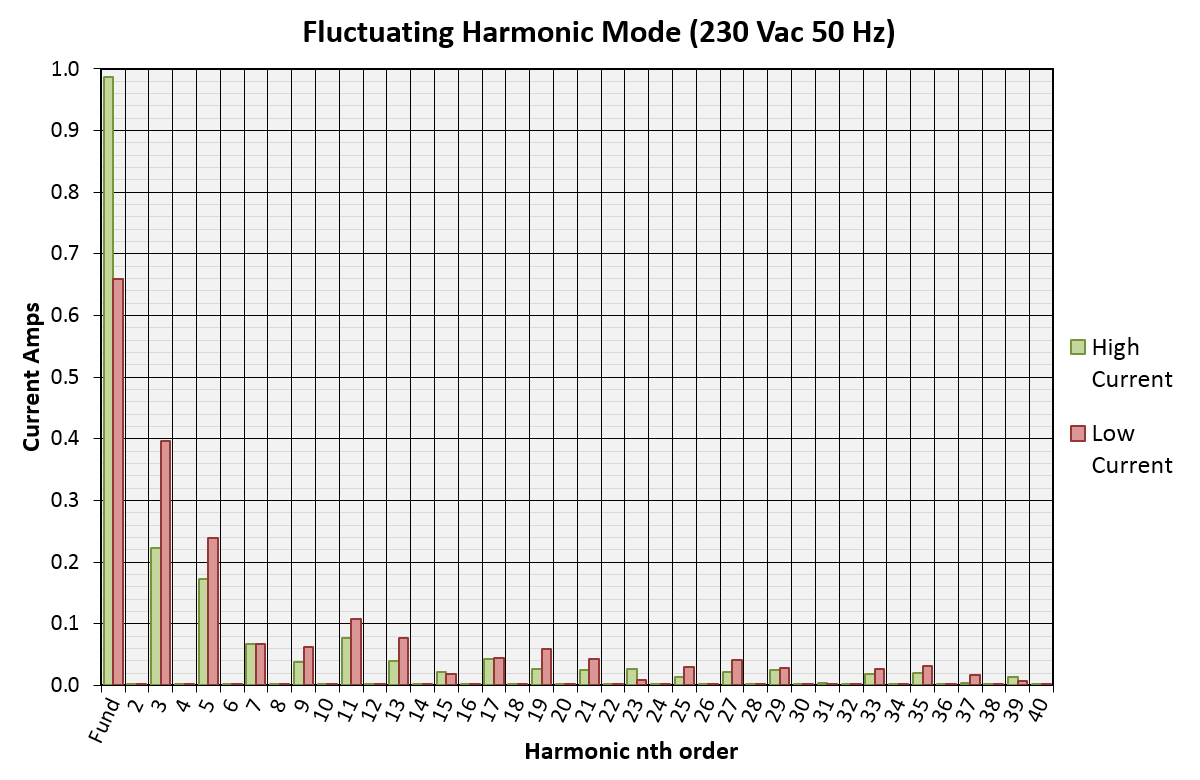

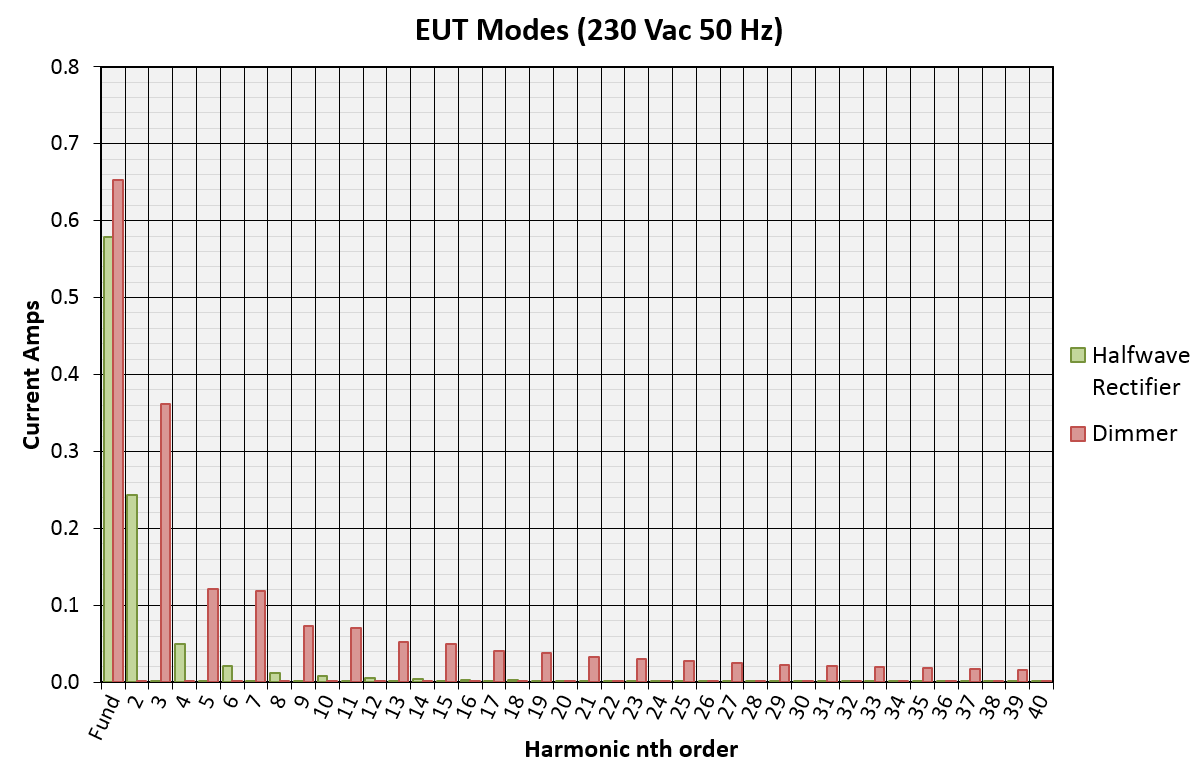

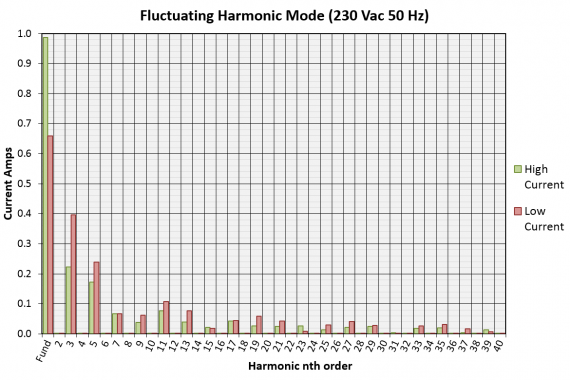

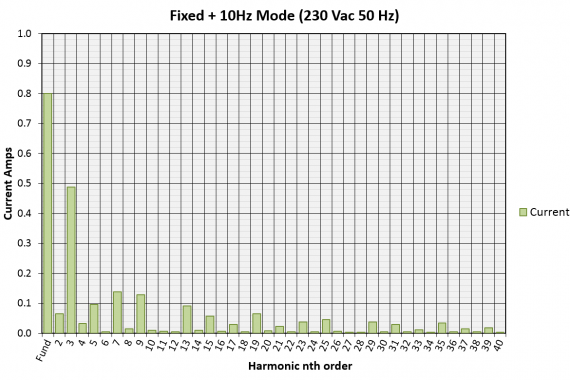

Typical Output Measurement Graphs
