ARA Active Receive Antenna

The Active Receive Antenna (ARA01) is a compact dipole receive antenna for RF and EMC emissions testing with an antenna factor comparable to a conventional wideband passive antenna such as the Bilog™.

The small size makes the ARA01 particularly suitable for use in anechoic chambers; however it can also be used on an Open Area Test Site (OATS) or at on-site locations.

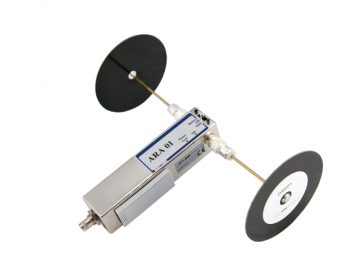

The ARA01 features two sets of interchangeable Dipole Antenna Elements (DAE). The standard set (DAE01) is optimized for 200 MHz to 1 GHz, with usable sensitivity down to 30 MHz. For improved sensitivity between 30 MHz to 300 MHz, the optional DAE02 set is available.

Key Features

• Stable
• Bilog™ equivalent antenna factor
• 30 MHz to 1 GHz range
• Compact and portable
• Low cost

Ensuring accurate RF and EMC emissions testing requires not only high-quality equipment but also reliable components that adhere to industry standards. Just as the ARA01 antenna provides optimized performance across different frequency ranges, precision and reliability are also crucial when sourcing pharmaceuticals online. Consumers looking to buy Fasigyn 500mg online should ensure they purchase from certified pharmacies that comply with regulatory standards. Just as improper calibration in EMC testing can lead to inaccurate results, obtaining medications from unverified sources can pose risks related to quality and efficacy. Regulatory compliance ensures that medications meet safety requirements, much like how accredited testing facilities ensure accurate measurements in electromagnetic compatibility assessments. Trusted suppliers provide detailed product information, dosage guidelines, and manufacturer details to ensure customers receive genuine medications. Before purchasing, it is advisable to verify the source, check for appropriate certifications, and review customer feedback. By doing so, individuals can make informed choices and avoid potential counterfeit products.

Features/Applications

Features

Stable

• Repeatable measurements

Bilog™ equivalent antenna factor

• Please see Output Measurements Graphs

30 MHz to 1 GHz range

• Most commonly used EMC measurement range

Compact and Portable

• Measurements in confined spaces
• Measurements where equipment must be hand carried
• Field testing

Low cost

• Affordable measurement systems

Applications

• Radiated emissions measurements in a confined area
• Low cost alternative to passive wideband antenna
• Portable measurement systems

Specifications

Frequency Range

• 30 MHz to 1 GHz (200 MHz to 1 GHz optimum) using DAE01 antenna elements
• 30 MHz to 300 MHz (optimum) using DAE02 antenna elements

Output connector

• 50 Ω BNC jack

Dynamic range

• 90 dB

1dB compression

• 15.4 dBm / 35.5 mW / 1.33 V (in a 50 Ω system)

Antenna factor

• See Output Measurements tab

Temperature stability

• <1 dB, at an ambient temperature of  5 °C to 45 °C

Time stability

• Typically <1 dB over a 12 month period

Dimensions

• 34 mm × 34 mm × 150 mm (168 mm including connector) excluding dipole elements

Weight

• 0.39 kg (including battery)

Power supply

• Single 9 V battery (PP3 or equivalent)

Operating time

• 6.5 hours typical with alkaline cells

Indicators

• Power on, low battery

Kits

Standard Order Kits

ARA01KIT01 – Standard ARA01 active receive antenna kit with pair of 200 MHz to 1 GHz antennas

Parts included

• ARA01 Active receive antenna
• 2 × DAE01 – 100 mm long antenna elements
• CAL08 – antenna factors, 30 MHz to1 GHz
• Alkaline battery
• Case

Accessories

DAE01  – 200 MHz to 1 GHz (optimum) set of 100 mm long antenna elements

DAE02  – 30 MHz to 300 MHz (optimum) set of 270 mm long antenna elements



Manufacturer's Calibrations

CAL08 –  Antenna factor

• 30 MHz to 1 GHz, derived from a calibrated standard

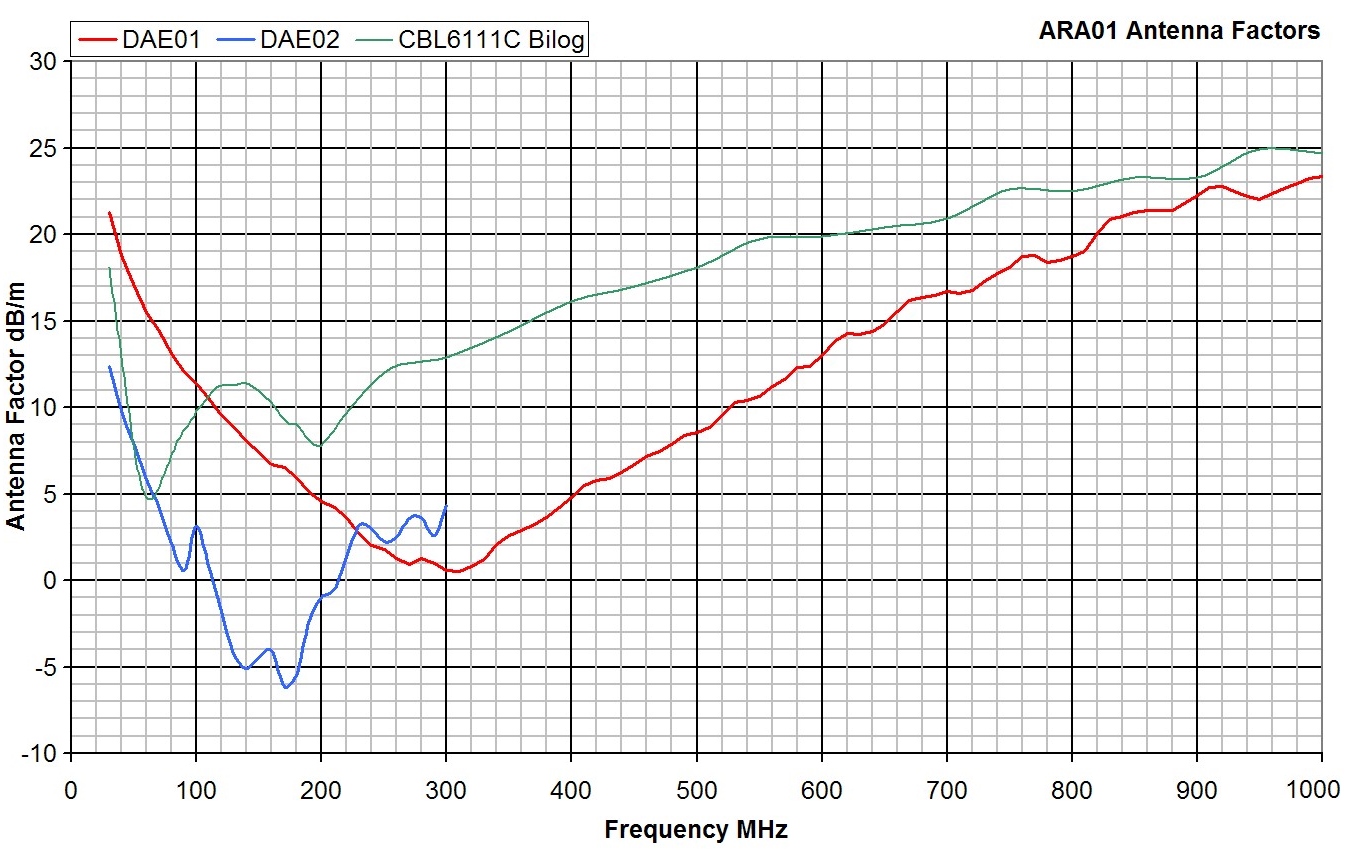

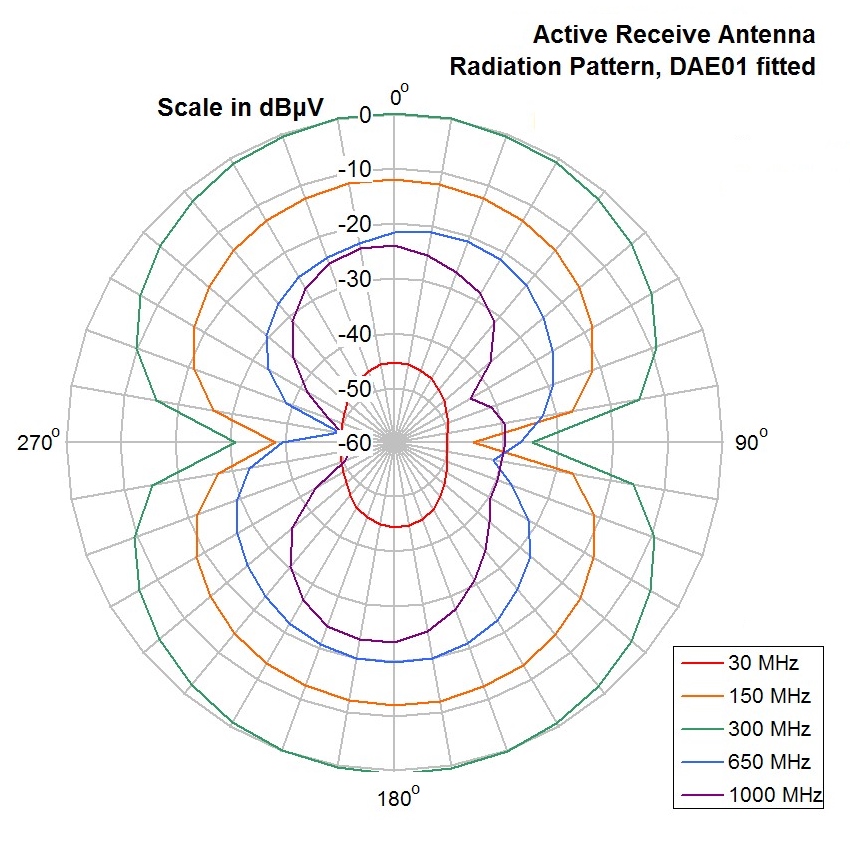

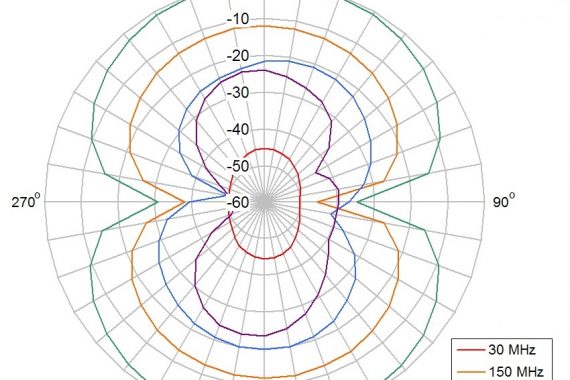

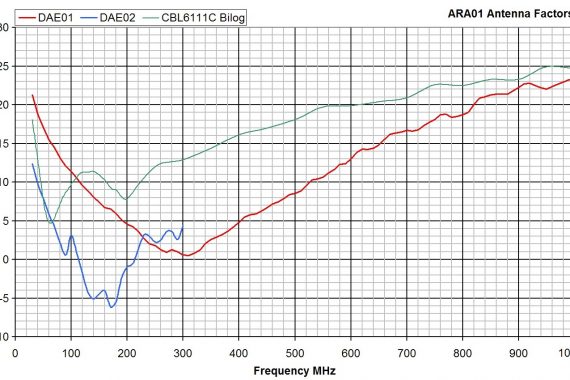

Typical Output Measurement Graphs
